• Stainless Steel Concealed Adjustable Hinge
1 1

TCH

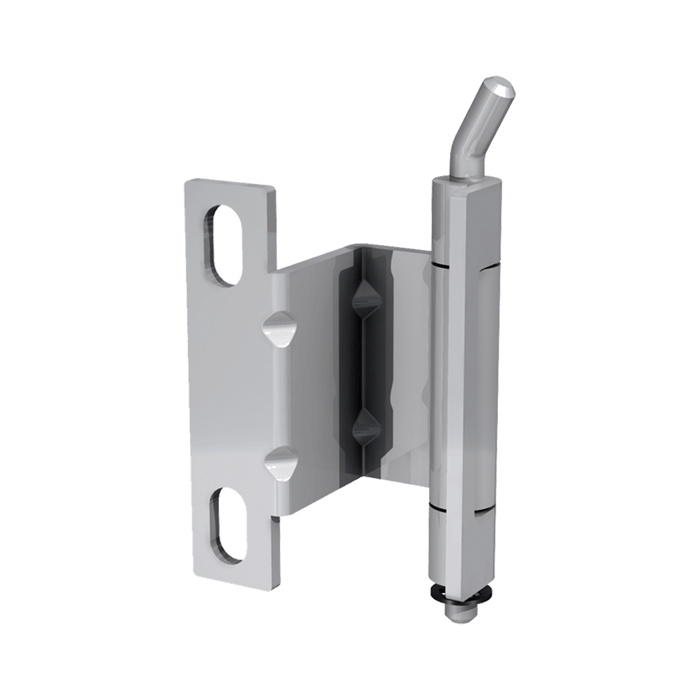

Stainless Steel Concealed Adjustable Hinge

Stainless Steel Concealed Adjustable Hinge

$8.74 USD
$10.92 USD $8.74 USD
Sale Sold out
Shipping calculated at checkout.
Size
  • Concealed, adjustable hinge with 120 degree opening angle
  • Removable pin for quick door removal
  • Reversible left and right, 6 mm of vertical adjustment
  • Offset for more compact design
  • MFG Item No: 505-312109805
  • Material: Stainless Steel
  • Color/Finish: Plain /
  • Width: 1.60in [40.6mm]
  • Height: 2.36in [59.9mm]
  • Depth: 0.98in [24.9mm]
  • Weight: 0.18lb [0.1 kg]
  • Country of Origin: China
    • PDFPDF Drawing
    DXFDXF File
    URL3D CAD Link
    PDFSales Sheet
    View full details
